Name: TAPPI T498 Tissue Softness Tester with 10-1000mN Measuring Range 1.2mm/s Test Speed and 15s Measurement Time
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P22
Price: 4,500.00 USD
Availability: InStock

Nhà Sản phẩm Thiết bị kiểm tra phòng thí nghiệm

TAPPI T498 Tissue Softness Tester with 10-1000mN Measuring Range 1.2mm/s Test Speed and 15s Measurement Time

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	SKYLIE
Chứng nhận:	CE, Calibration Certificate, Rosh, CO...
Số mô hình:	SL-P22

Thanh toán:

Số lượng đặt hàng tối thiểu:	1
chi tiết đóng gói:	Gói gỗ dán xuất khẩu
Thời gian giao hàng:	15 ngày làm việc
Điều khoản thanh toán:	L/C, D/P, D/A, T/T, Liên minh phương Tây, Moneygram
Khả năng cung cấp:	20-30 /tháng

Tiếp xúc

Chi tiết sản phẩm

Phạm vi đo:	(10 ~ 1000) mN	Tốc độ kiểm tra:	1,2 mm/giây
Thời gian đo:	15s	Nghị quyết:	1mN
sự chính xác:	± 1%	Độ sâu thâm nhập thăm dò:	8 +0,5mm
Nền tảng mẫu có chiều rộng hẹp:	5 mm, 6,35mm, 10 mm, 20 mm	Lỗi song song hai bên khe bàn mẫu:	≤0,05mm
Nguồn cấp:	AC 220V ± 22V, 50Hz
Làm nổi bật:	10-1000mN Measuring Range Tissue Softness Tester , 1.2mm/s Test Speed TAPPI T498 Test Machine , 15s Measurement Time Softness Testing Equipment

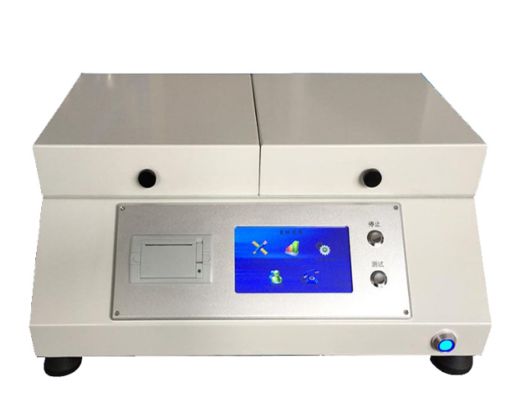

TAPPI T498 Tissue Softness Test Machine

Product Overview

The Tissue Softness Tester is a precision instrument that simulates hand feel to measure material softness. Designed in compliance with GB8942 national standard for paper softness determination, it's ideal for testing medium and high-grade toilet paper, tobacco sheets, fabrics, and similar sheet materials.

Key Features

Microcomputer-controlled digital test system with touch screen interface
Bilingual (Chinese/English) operating system with intuitive controls
Advanced technology with reliable performance and easy operation
Ideal for paper manufacturing, scientific research, and quality inspection

Test Principle

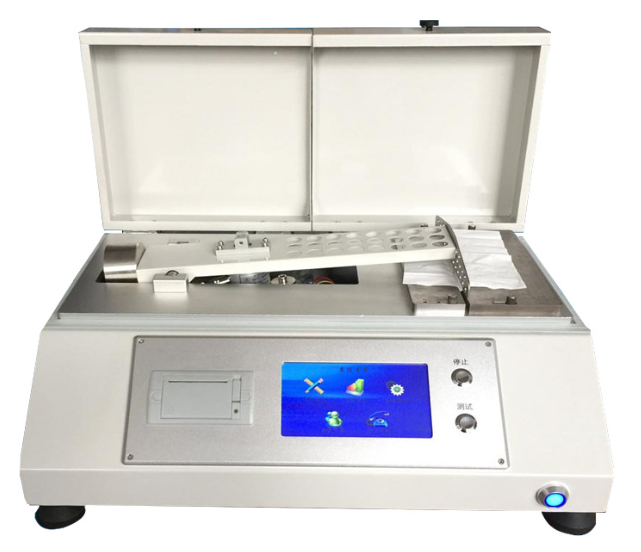

The instrument measures softness by pressing a plate probe into the sample to a depth of approximately 8mm. The softness value (in millinewtons) represents the sum of the sample's maximum anti-bending force vector and the friction between sample and gap. Lower values indicate softer materials.

Compliance Standards

GB/T 8942 QB/T 1060 ASTM D2923 ASTM D6828-02 TAPPI T498 INDA IST 90.3 EDANA WSP 90.3

Technical Specifications

Parameter	Specification
Measuring range	(10 ~ 1000) mN
Test speed	1.2mm/s
Measurement time	15s
Resolution	1mN
Accuracy	±1%
Probe penetration depth	8 +0.5mm
Sample platform narrow width	5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit	≤0.05mm
Display	5-inch touch screen with curve display (50,000 hour lifespan)
Power supply	AC 220V ± 22V, 50Hz
Transport packaging	Wooden outer box with internal buffer material
