| Tên thương hiệu: | SKYLINE |
| MOQ: | 1 |
| giá bán: | Negotiate |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1 bộ/tháng |
Professional burning testing equipment with 700℃ heating temperature, compliant with IEC 60695-11-4 standards for evaluating plastic material flammability in consumer electric devices and appliances.

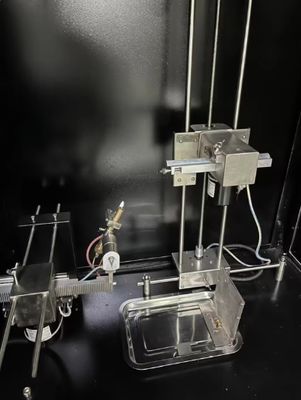

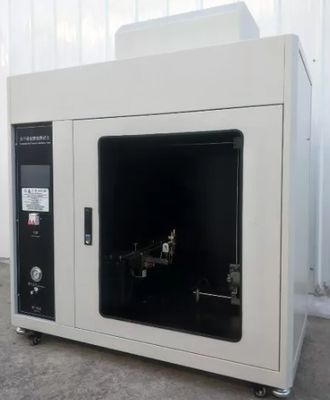

This UL 94 flame chamber testing machine features both horizontal and vertical configurations for comprehensive flammability analysis. Constructed with durable stainless steel and a black interior for optimal visibility, the unit includes a large sliding window, adjustable specimen support, and precision gas flow controls.
| Parameter | 500W (5V class) | 50W (HB/V class) |
|---|---|---|
| Test Flame | 500W (V-0,V-1,V-2 classification) | 50W (V-0,V-1,V-2 classification) |
| Burner Tube | Φ 9.5mm±0.3mm | Φ 9.5mm±0.3mm |
| Burning Angle | 0°,20°,45° | 0°,20°,45° |
| Thermocouple | Type K (Ni/Cr - Ni/Al) | Type K (Ni/Cr - Ni/Al) |
| Thermocouple Size | 0.5 mm | 0.5 mm |
| Standard Copper Block | 9mm±0.01mm, 10g±0.05g | 5.5mm±0.01mm, 76g±0.01g |
| Time for Temperature Increase | 100°C→700°C: 54s±2s | 100°C→700°C: 44s±2s |
| Gas Flow | 965±32ml/min | 105±10ml/min |
| Gas Supply | Methane, ≥98% purity | Methane, ≥98% purity |
| Water-column | 125m±5mm | <10mm |
| Test Time | 54±2s | 44±2s |
| Flame Height Indicator | 40±1mm | 20±1mm |
| Volume Of Chamber | >0.5m³, black interior | >0.5m³, black interior |
| Conform to standard | UL94, IEC60695-11-3, IEC60695-11-20 | UL94, IEC60695-11-4, IEC60695-11-10 |
